XHC-MK3: MACH3 3—axis control card.

XHC-Mk4: MACH3 4-axis control card.

XHC-MK6: MACH3 6-axis control card.



MKX-IV manualMKX-V  manual
Applicable systemMach3Mach3
Support axis number3/4/63/4/6
Interface typeUSBUSB
Communication distance1.5m usb cable1.5m usb cable
stabilityMKX-IV<MKX-V

Anti-interference abilityMKX-IV<MKX-V

axis drive modeCommon modeDifferential signal
I/O16 input,8 output6 input,8 output
特殊功能none

support save data when power off

support spindle speed feedback



Features:
1. Support all versions of Mach3
2. Support system: Windows XP, 2000, Vista, 7. (not including Mac OS)
3. USB jack does not need to install the driver, plug and play under all versions of Windows.
4. Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach3 working state, USB cable unplugs and then plugs in, but also the normal connection.
5. Supports 4-axis linkage.
6. Maximum step-pulse frequency is 2000 KHz, can connect servo driver and stepper driver.
7. The indicator light indicates various working status, such as USB connection, Mach3 connection and so on.
8. 16 input IO.
9. Speed testing function, the spindle actual speed displays on the Mach3 interface in real time.
10. Onboard isolated power supply, not need external power supply.
11. All IO port fully isolated, strong anti-interference, stable performance
12. Support XHC series of wireless electronic MPG, such as WHB04 MPG.
13. Support spindle speed PWM output; support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage.





Parameter Description

CPU

Dual-Processors, ARM+FPGA

Axis output control

Drive Current

Isolated open collector output; 5V, 20mA

Drive

Pulse + direction output

Output frequency

2000 KHZ (2MHz)

Axis

XHC-MK3:3-axis XHC-MK4:4-axis XHC-MK6:6-axis

Isolation Voltage

3.5KV

Spindle inverter output

Analog voltage output

0-10V

PWM output

5V, 1KHZ, Duty;  0-100%

Pulse + direction output

5V, 15HZ to 4 KHZ

Spindle speed input

Input

Isolated input, 5V pulse signal

Isolation Voltage

3.5KV

8 IO output

Drive Current

Isolation: 50mA, 25V

Isolation Voltage

3.5KV

16 IO input

Input Current

Isolated inputs, 5 mA, maximum voltage 25V

Isolation Voltage

3.5KV

Mach3 Port Position

P1 Port

USB interface

Complies with USB2.0 standard

    Package Contents:

  •      1 x CNC Controller XHC MK4
  •      1 x USB Cable
  •      1 x Manual
  •      1 x CD

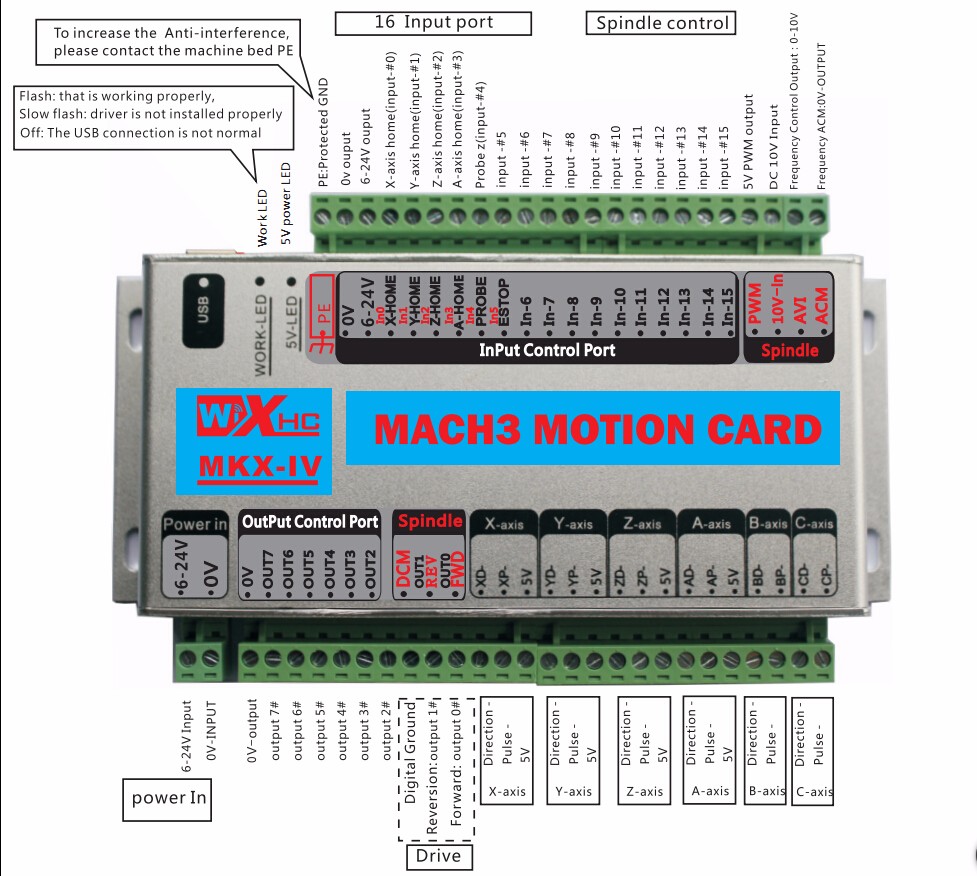

   Interface Schematics:



2

 Simple connection description

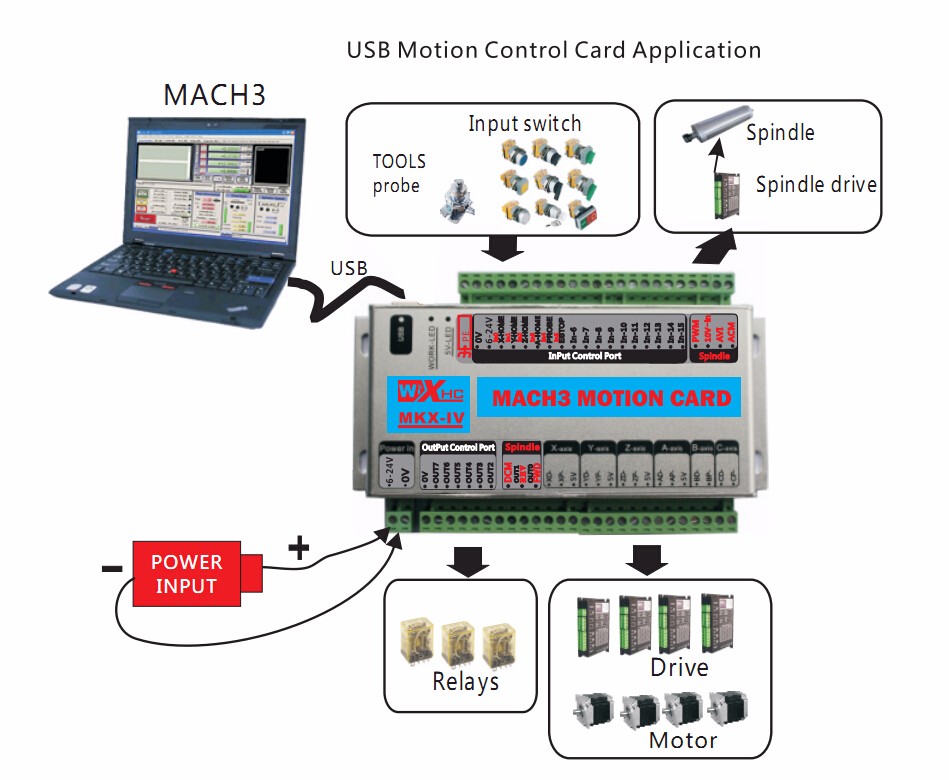

1.    Application Connection Diagram


3
2.    Motion control card Dimensions
1





Write a review

Note: HTML is not translated!
    Bad           Good

XHC MK 3 Axis/4 Axis/6 Axis USB Cnc controller

  • Brand: LOLLETTE
  • Product Code: XHC-MK3-4-6
  • Availability: In Stock
  • $259.00
  • $139.00
